An evolution of the original, now exceeding the ISO Race standard

Low profile crank arm reduces pedal strike during technical punchy climbs, allowing you to clean more sections of trail and get back up to take another lap with less effort

Q Factor: 182mm when installed on Shimano EP8

Weight: 440g

Please have cranks installed by an experienced eBike Mechanic. M6X1.0 bolts need to be tightened to 14N-m. Add Blue Loctite to each bolt and end cap. Check bolts after your first ride to make sure they are at the proper spec

• TECH SPECS

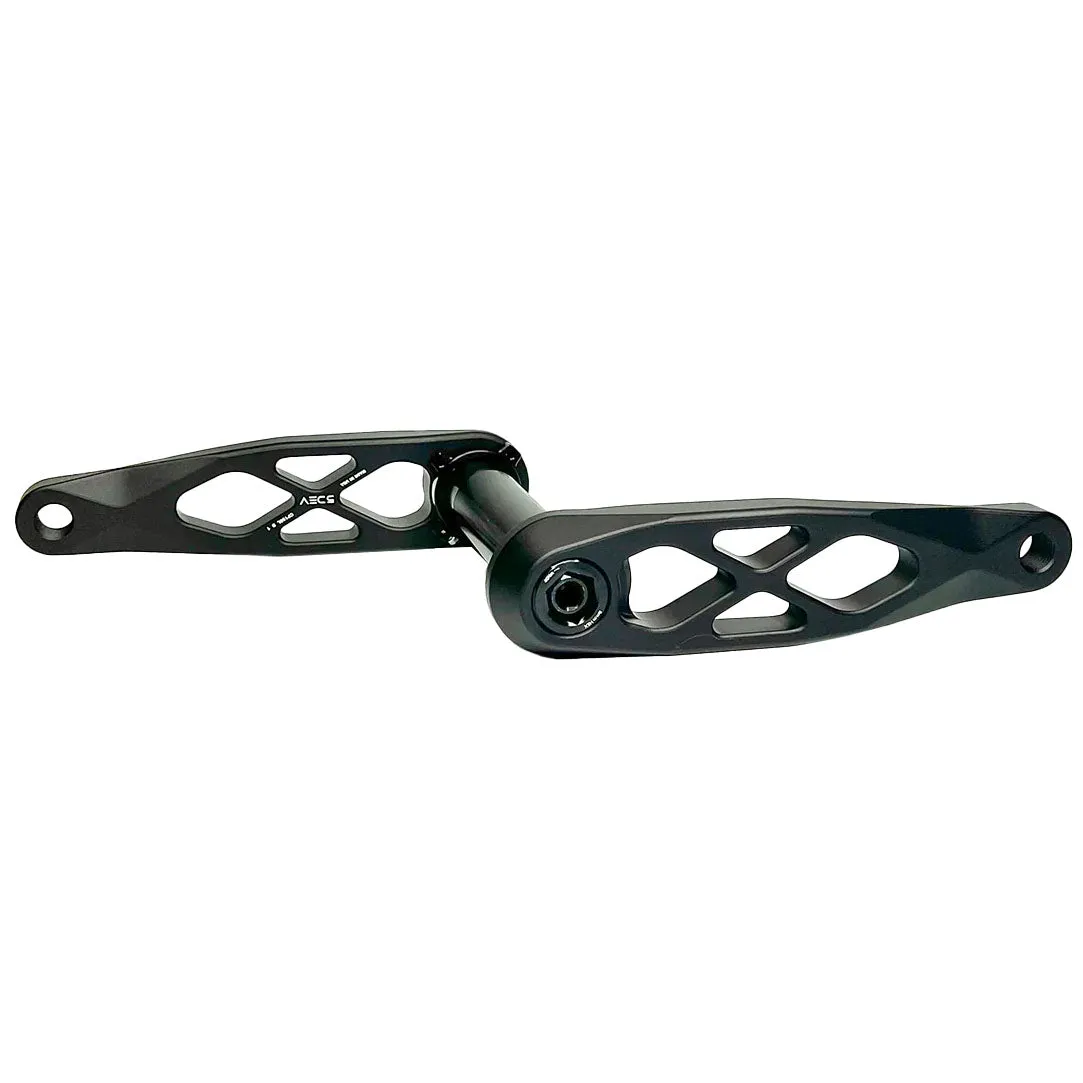

model	R-Spec Shimano eCranks
length	155mm
spindle interface	EP8 Spline Drive
Q factor	182mm
material	aluminum
color	black
